Hot water tank 120 liters plus heating rod teri 2.0 kW

120-litre hot water tank plus TERi 2.0 kW heating element & screw-in heater

Product description - Hot water tank

The 120-liter hot water tank provides centralized and reliable hot water heating. It is ideal for combination with solar thermal systems, boilers, or a photovoltaic system controlled by a retrofittable heating element.

Equipped with an efficient heat exchanger, the storage tank reliably heats domestic water. Long-lasting performance is further achieved through a high-quality enamel coating and an integrated magnesium anode.

Technical details of hot water tank

With a heat exchanger surface area of 1.4 m² and a capacity of 6.1 liters, the storage tank impresses even with high hot water requirements. Connections for flow, return, and circulation are provided via 3/4"-AG, while the connection for the electric heating element is via 1 1/2"-IG is realized.

The hot water tank operates reliably at a maximum operating temperature of 95 °C in the tank and 100 °C in the heat exchanger. The solid polyurethane foam insulation guarantees low heat loss of just 32 watts.

Advantages and combination options

The excellent price-performance ratio and high hot water comfort make the storage tank the optimal solution for areas with a water demand of 100 to 180 liters. It can also be combined in a variety of ways with solid fuel, wood gasification, and pellet boilers, as well as solar thermal systems.

The integrated circulation connection enables efficient heat distribution, while the additional installation of a 1 1/2"-Heating rod offers even more flexibility – also ideal in combination with photovoltaic systems.

Product description - Screw-in heater

The screw-in heater is an ideal solution for directly heating liquids. It is ideal for applications in water heaters, solar systems, buffer tanks, and stainless steel tanks. Its design allows for versatile use in a variety of applications.

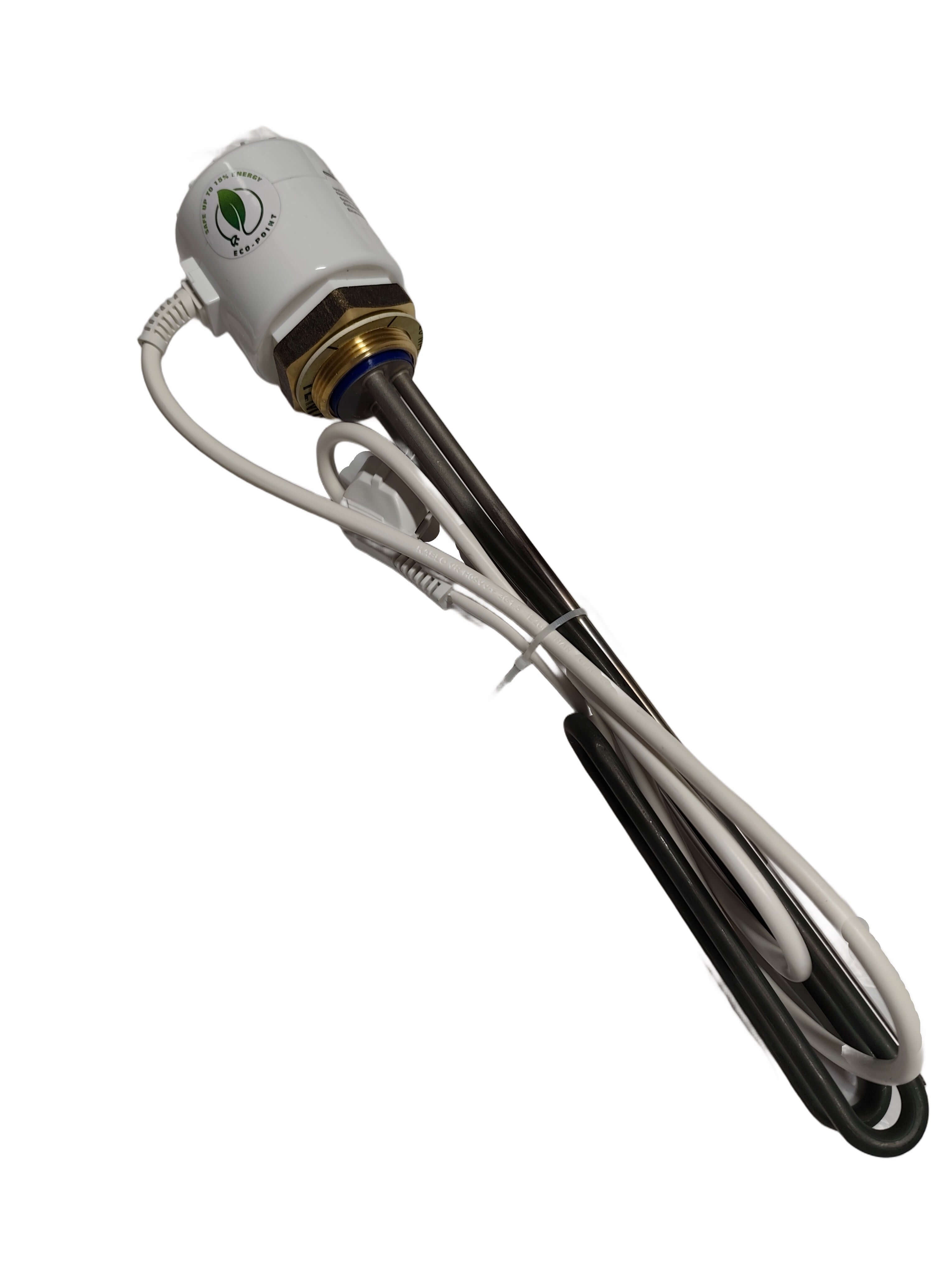

The robust tubular heating element and capillary sheath with 6/4" thread guarantee safe and easy installation. The heating element is made of acid-resistant Incoloy steel, ensuring high corrosion resistance and an extended service life.

Robust construction and easy installation

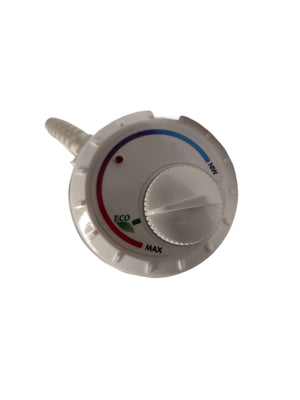

The heater's practical plastic housing protects the internal electronics and ensures the device's stability. Precise temperature control in the range from 5 to 70 °C, supported by the innovative ECO-POINT function, ensures efficient energy use.

In addition, the non-automatic temperature limiter, which activates at 87°C, guarantees maximum safety. The 1500 mm long power cable including plug simplifies commissioning and allows for quick installation without additional electrical work.

Safety features and quality standards

The radiator meets the highest quality and safety requirements according to current European standards. The operating indicator light provides information about the operating status, while the sophisticated design ensures that all safety-relevant components work together optimally.

Thanks to its reliable and robust design, this screw-in heater not only offers maximum performance and durability, but also efficient and safe operation in every application.

Technical data

Technical data hot water tank

• Volume: 120 liters
• Heat exchanger surface: 1.4 m²
• Heat exchanger capacity: 6.1 liters
• Connection flow and return heating: 3/4" AG
• Connection flow and return domestic water: 3/4" AG
• Circulation connection: 3/4" AG
• Magnesium anode connection: 1 1/4" IG
• Connection for electric heating: 1 1/2" IG
• Thermal insulation: polyurethane foam (PUR)
• Max. operating temperature storage 95 °C
• Max. operating pressure storage tank/heat exchanger: 6 bar
• Max. operating temperature heat exchanger 100 °C
• Loss: 32 watts
• Dimensions with insulation (diameter x height): 565 x 1045 mm
• Weight (empty): 71 kg

Technical data heating element

• Power of 2000 W,
• Supply voltage 230 V
• Immersion length 360 mm
• unheated zone 80 mm
• Net weight 1 kg

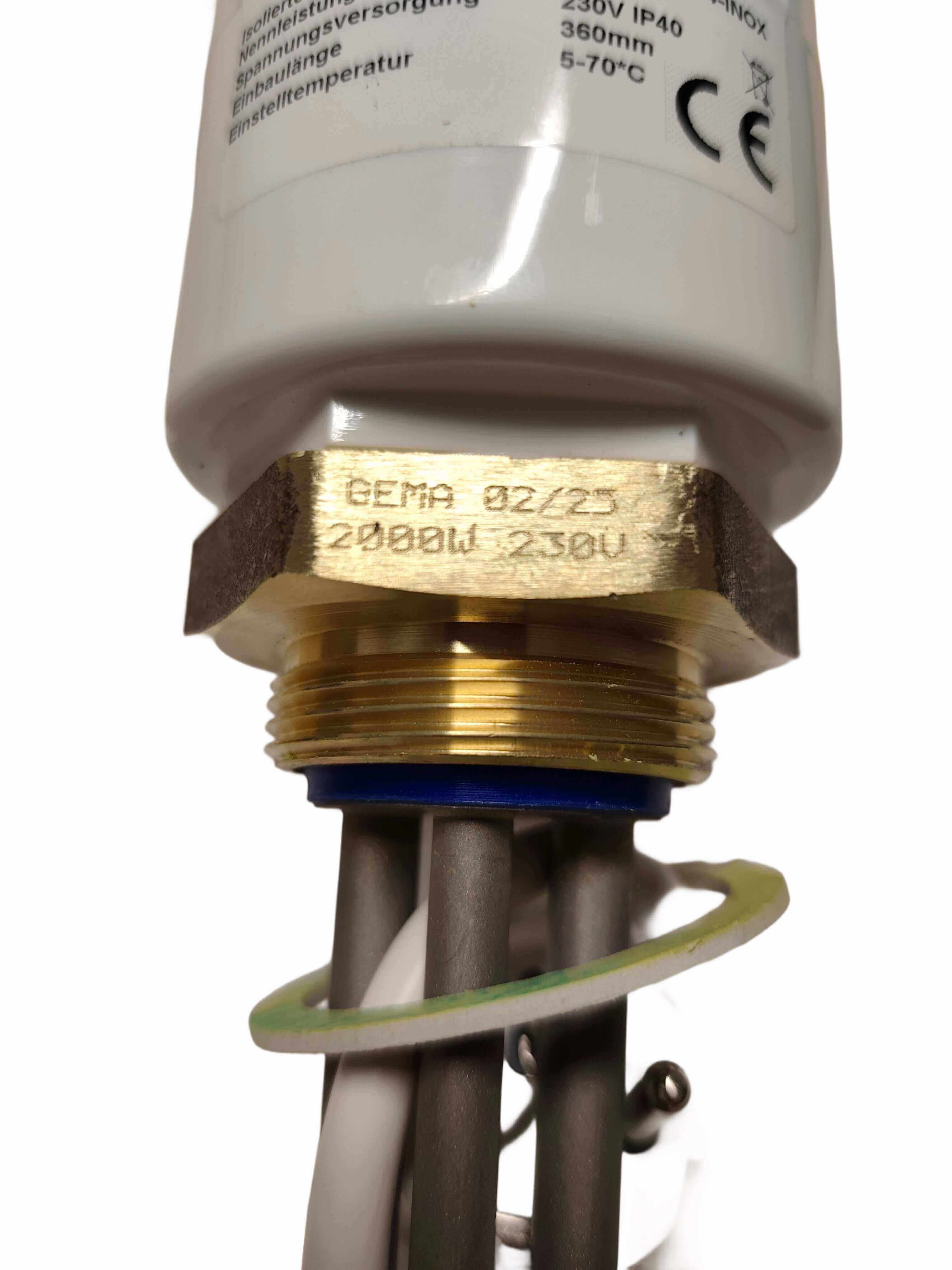

• standardized 1 1/2" threaded connection

Scope of delivery

• 1 x heating element
• Installation instructions for heating element
• Drinking water storage with 1 heat exchanger including insulation
• safety valve
• Operating and maintenance instructions for drinking water storage tanks

Download

• Operating instructions
