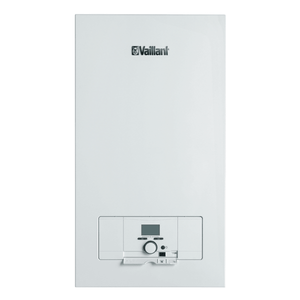

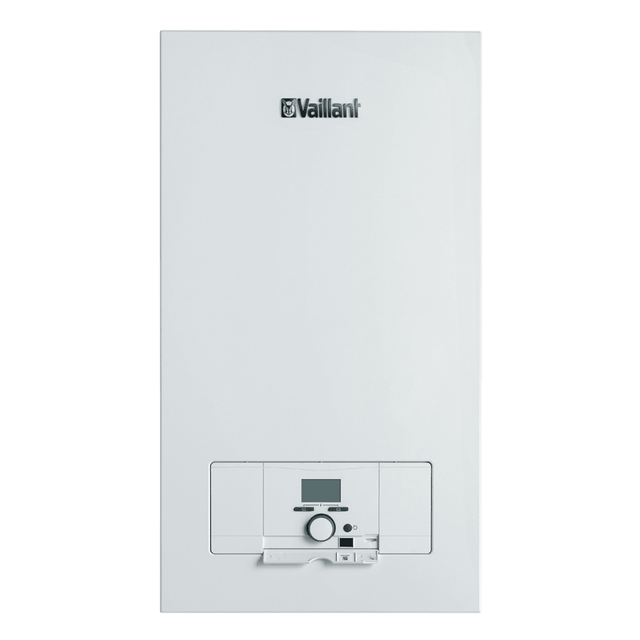

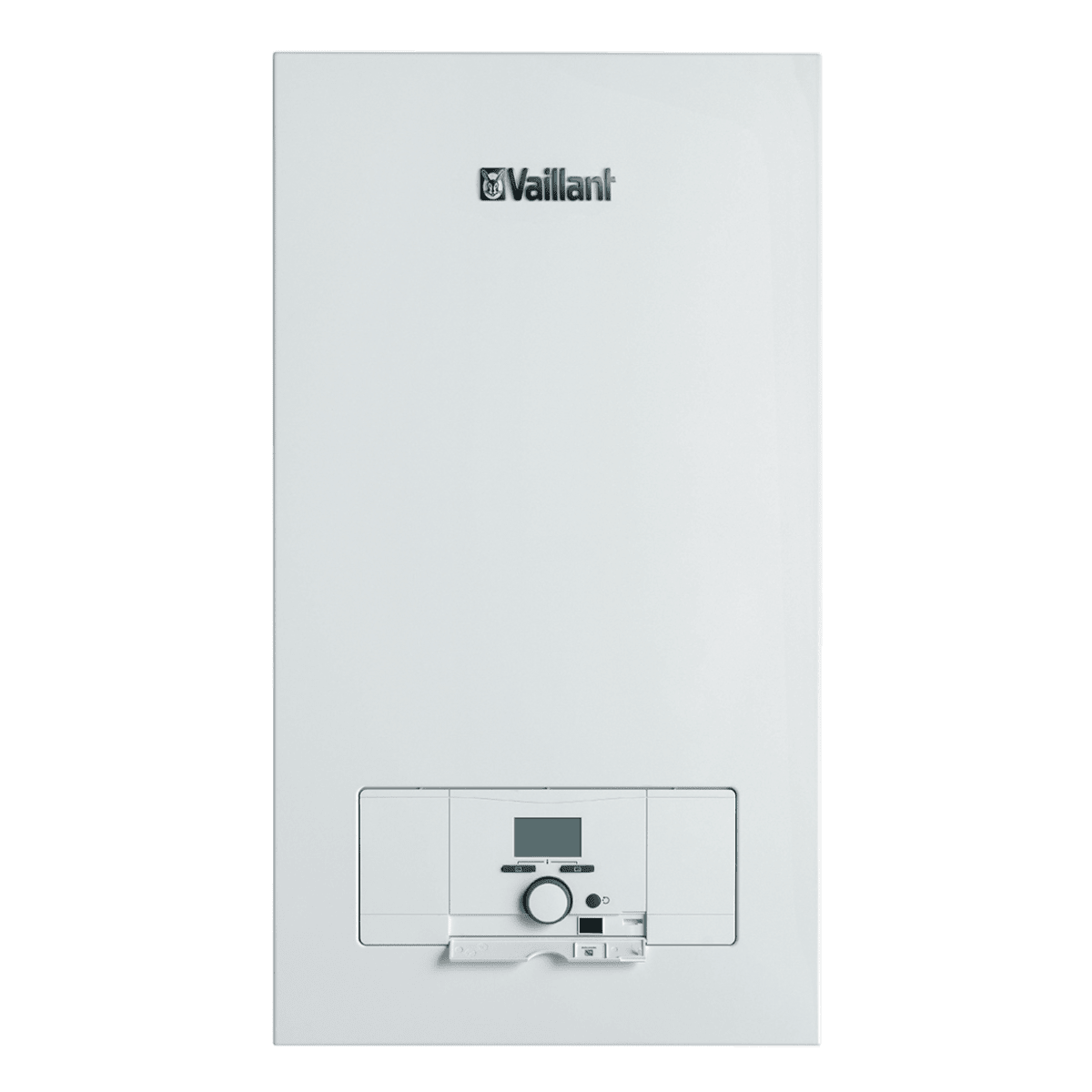

Vaillant electric heater eloBLOCK including high-efficiency pump

Vaillant eloBLOCK hot water central heating system, combinable with water storage tank

Special features of the Vaillant eloBLOCK:

• Energy-efficient power consumption through optimal power adjustment
• Ideal as an auxiliary heater, z.B. for peak load coverage in heat pump systems
• Integration into existing heating systems is possible
• A reliable alternative to gas wall-mounted boilers when no gas connection is available.

When additional heat is needed quickly, our technically and visually completely redesigned eloBLOCK electric heater is an excellent choice. For example, you can use it with a heat pump system to cover peak loads. It's equally well-suited for simple heating solutions in holiday homes or garden sheds. Its use in combination with photovoltaics is particularly sustainable. Thanks to its eBUS interface, the eloBLOCK can also be integrated into existing heating systems.

Quickly and easily to your desired temperature

With its high-efficiency pump, optimal power adjustment, and fine power gradations, our eloBLOCK electric heater is energy-efficient. Intelligent technical details such as the safety temperature limiter and the built-in frost protection function ensure maximum operational reliability at all times.

With the finely adjustable control and the precisely adjustable hot water temperature, you can quickly and conveniently reach your desired temperature at any time.

Technical specifications Vaillant eloBLOCK:

A notice:

The weather-compensated controller VRC 700 or VRC 720 must be ordered separately if the eloBLOCK is used as a heating unit only.
When combining an eloBLOCK with a heat generator, a VR 32B module is required.

Installation instructions:

Devices with a 230V connection are supplied with either a Schuko plug or a hardwired connection (without a plug), depending on their power rating. In the case of a hardwired connection, a qualified electrician must be commissioned to carry out the installation.

For devices with a connection rating of 400V, a high-voltage connection (three-phase alternating connection) is necessary; installation may only be carried out by a registered specialist company, and the approval of the respective network operator must be obtained before initial installation.

For devices with a rated output exceeding 12 kW, you require the approval of your network operator. Please contact your network operator or an installation company listed in their installer directory for installation. This installation company will also assist you in obtaining the necessary approval from the respective network operator.

Note regarding stationary electric individual room heaters:

In accordance with EU Ecodesign Directive 2009/125/EC, Regulation 2015/1188 was issued, establishing requirements for the environmentally sound design of local space heaters. The installation and commissioning of electric local space heaters is only permitted in combination with an external room temperature control system that fulfills the following functions:

• Weekday schedule
• Window-open detection and/or adaptive control of the heating start.

Suitable room temperature controllers (thermostats) can be found in our accessories section. We would be happy to advise you in detail on this topic and put together a suitable package for you.

What special rules apply to mobile devices?

Regarding portable electric room appliances, we would like to point out that "These products are only suitable for well-insulated rooms or for occasional use".
