Sunex Fish Carbon S4 drinking water memory

Sunex FISH Carbon S4 drinking water storage tank – 200 liters

Advantages at a glance

With its 200-liter volume and a weight of just 33 kg, the Sunex FISH Carbon S4 offers an unbeatable capacity-to-handle ratio. The centralized arrangement of all connections on the top allows for flexible connection to a wide variety of heating systems without wasting space.

Thanks to the 30 mm thick PU rigid foam insulation, heat loss is minimized and the system's energy efficiency is significantly increased. The corrosion-resistant construction made of HDPE and glass fiber reinforced composite eliminates rust formation and ensures a long service life.

Technology

Storage capacity: 200 liters, Material: HDPE + fiberglass composite, Max. operating pressure: 6 bar, Test pressure: 9 bar, Max. operating temperature: 75 °C, Energy efficiency class: B, Insulation: 30 mm PU rigid foam, Heat loss (standstill): 58 W, Outer jacket: Blue, Weight: 33 kg.

Material & Construction

The core of the drinking water storage tank is made of high-density polyethylene (HDPE), reinforced on the outside with a fiberglass composite. This combination provides excellent corrosion protection and maximum resistance to pressure and chemical influences.

Compared to conventional steel tanks, there's no risk of rust or deposits forming inside. This ensures consistently high water quality and significantly reduces maintenance requirements.

Energy optimization

The thick PU rigid foam insulation ensures that standby losses are only 58 W thanks to its excellent insulation properties. This gives the tank an energy efficiency rating of B and contributes to sustainable and cost-effective hot water production.

Due to its low heat loss, the Sunex FISH Carbon S4 is particularly suitable for systems with intermittent use, as stored heat is retained over longer periods.

Easy integration

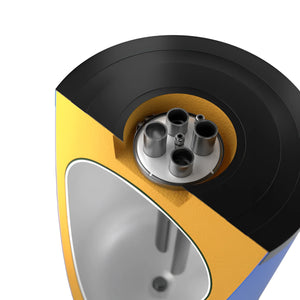

The compact design and blue-painted outer shell ensure quick identification and effortless placement in your heating or drinking water system. The top-mounted connections enable uncomplicated installation and ensure short installation times.

Technical data

• Storage capacity: 200 liters
• Material: HDPE + glass fiber composite
• Max. operating pressure: 6 bar
• Test pressure: 9 bar
• Max. operating temperature: 75°C
• Energy efficiency class: B
• Insulation: 30 mm PU rigid foam
• Heat loss (standstill): 58 W
• Outer jacket: Blue
• Weight: 33 kg


Scope of delivery

• Sunex Fish S4 Carbon 200 liters
• Assembly and operating instructions

Download

• Brochure
