Wood gasification boiler ATTACK DPX – Efficient biomass combustion at the highest level
Product overview
The ATTACK DPX belongs to the renowned 6000 series and impresses with its innovative Wood burningtechnology. It was specifically developed for the efficient use of wood as fuel, thus offering high levels of comfort, environmental friendliness, and a robust construction.
With a generous combustion chamber, the boiler ensures a long burn time and significantly reduces the effort required to refill wood. The option of choosing the boiler with a door opening on the right or left side further increases installation flexibility.
Efficient and convenient use

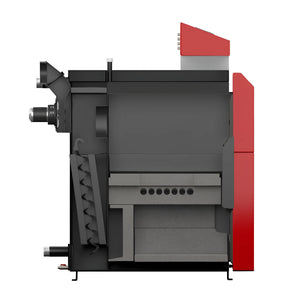

Thanks to its large fuel chamber of 82 dm³, even larger logs up to 350 mm in diameter can be used, optimizing fuel consumption and minimizing maintenance costs. At full combustion chamber capacity, the fuel burns continuously for 8-12 hours, ensuring continuous heating.
The compact and versatile design offers maximum ease of use, making adding fuel a smooth and time-saving process.
Automatic chimney cover

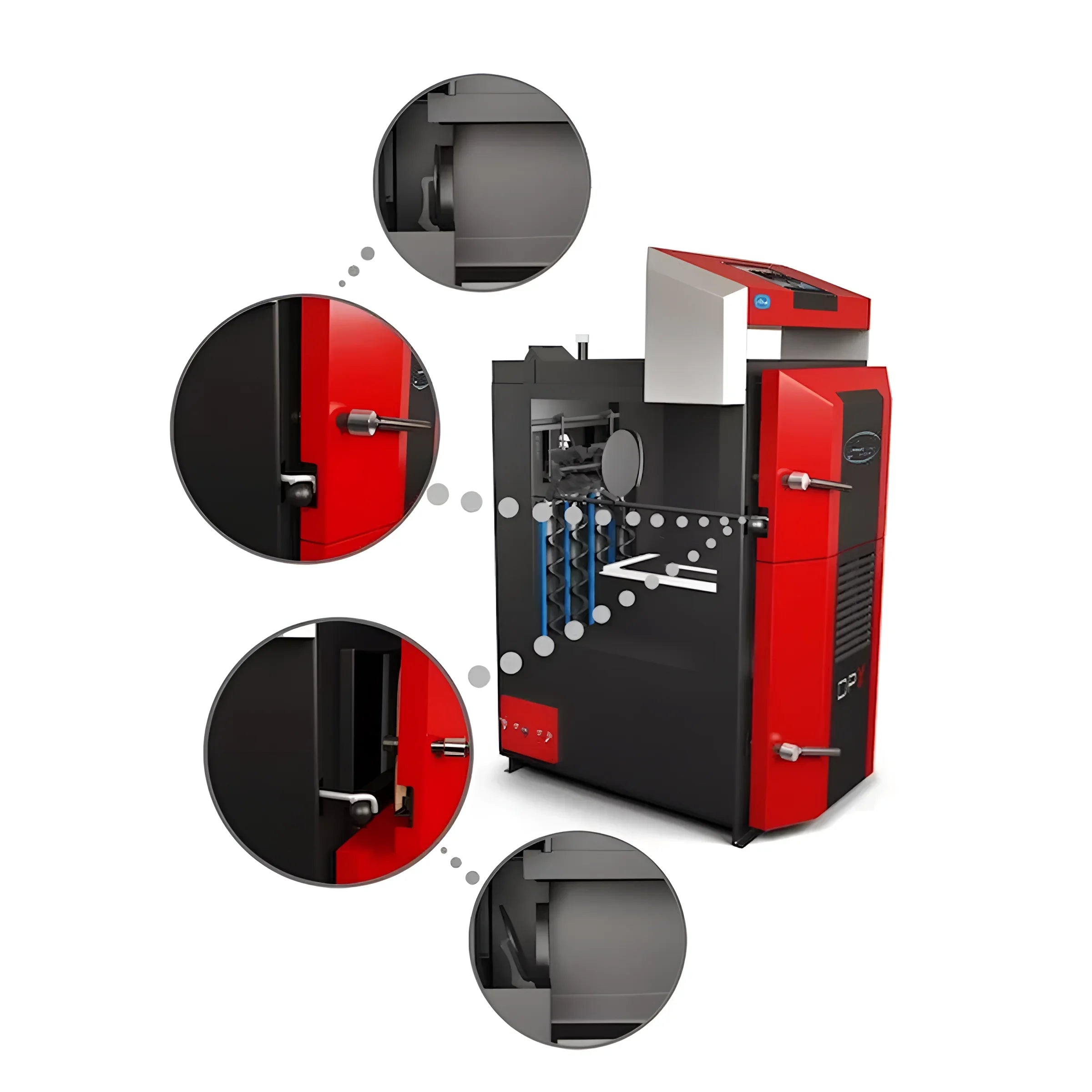

A standout feature of the DPX boiler is the automatic chimney cover. This function not only facilitates boiler ignition but also ensures efficient flue gas extraction into the chimney. The cover is automatically controlled when the fuel doors are opened and closed, eliminating the need for manual operation.
This enables trouble-free heating operation, which further increases comfort and safety during use.
High-quality workmanship
The ATTACK DPX wood gasification boiler is manufactured from premium materials. Robust 6 mm boiler steel is used, which, combined with fire-resistant and heat-resistant molded parts, guarantees a long service life and high levels of safety up to temperatures of 1350 °C.
The proven technological features, including movable flue gas turbulators, underscore the boiler's quality and reliability. This makes it a durable and maintenance-friendly solution for efficient heating systems.
Flexible control options and ease of use
The DPX boiler is equipped with a user-friendly professional control panel that allows intuitive control of all important functions. These include automatic shutdown after fuel consumption, control of the heating pumps, and monitoring of the entire combustion process.
The simple operation also makes it easier for the user to handle the system on a daily basis, which contributes to smooth and effective heating control.
PROFI control for precise control
For users who require particularly precise control, the boiler offers PROFI regulation with a precise PID controller. This enables smooth adjustment of the fan speed and thus optimal control of the flue gas temperature.
The precise control is complemented by fuzzy logic technology, which uses sensors to monitor and optimize the combustion process in real time. The control system's display shows all key operating data—from boiler and flue gas temperatures to storage tank temperatures—facilitating an overview of the entire heating system.
In addition, various pumps, such as the heating circuit pump and the storage tank charging pump, can be centrally controlled. If necessary, the storage tank can be prevented from discharging, and the boiler will shut down automatically if the fuel runs out.This ensures safe and efficient operation in everyday life.
Technical data
- Energy efficiency class: A+
- Boiler class: 5
- Nominal heat output: 15 kW
- Power range: 7.5 kW - 15 kW
- Efficiency: 91.3%
- Tensile force: 23 Pa
- Maximum firewood length: dry wood with a calorific value of 15-17 MJ/kg, moisture content min. 12% - max. 20%, Φ 80-150 mm
- Exhaust gas temperature: 160 °C
- Exhaust gas mass flow: 0.014 kg/s
- Height: 1240 mm
- Width: 700 mm
- Depth: 840 mm
- Flue pipe connection: 160 mm
- Weight: 370.0 kg
Scope of delivery
- Wood gasification boiler Attack DPX 15 kW
- Assembly & operating instructions
