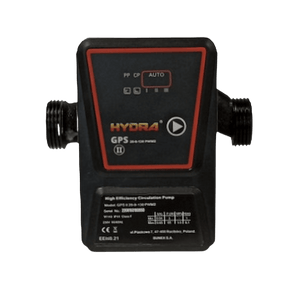

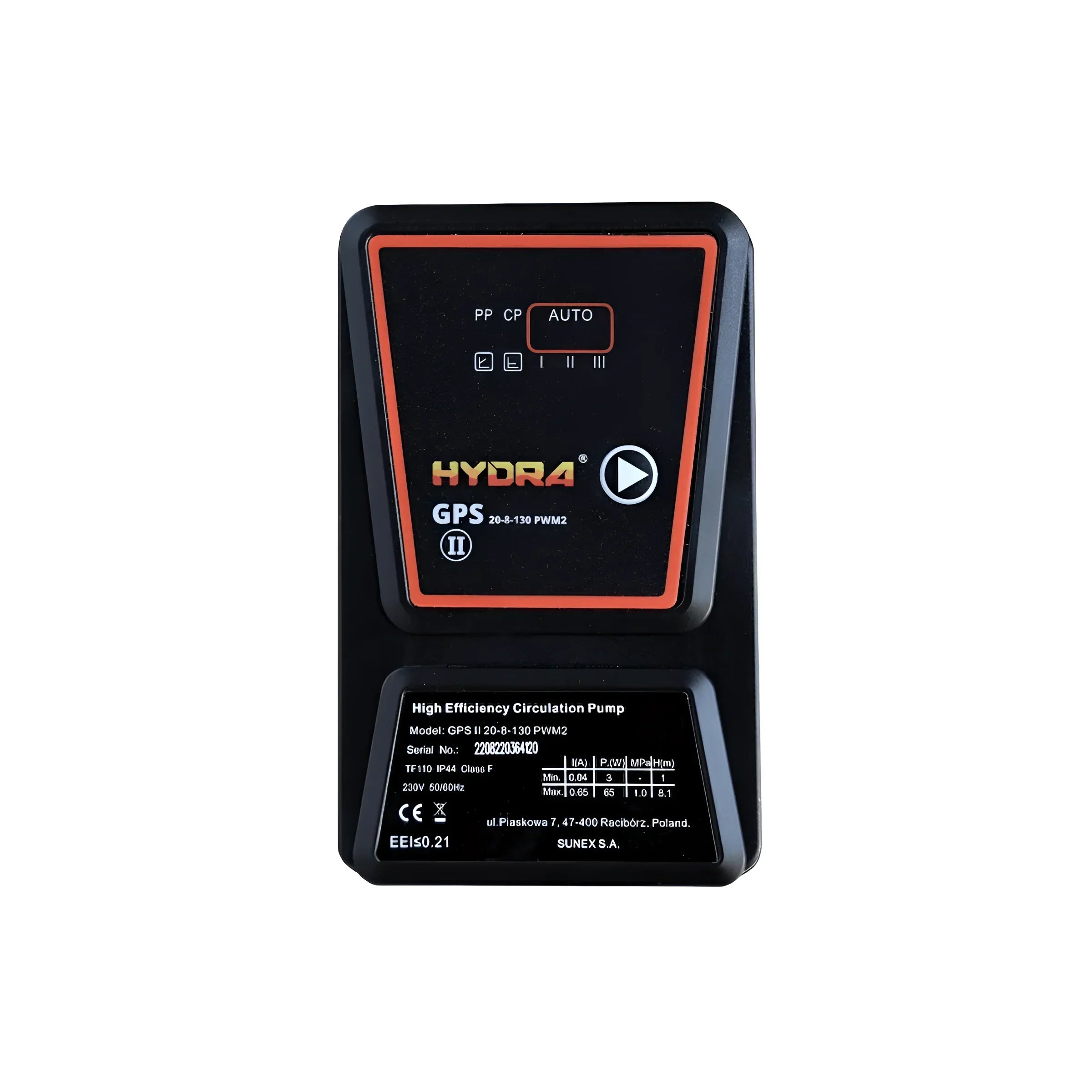

Solar pump Hydra GPS II 20-8-130 PWM2

Solar pump with PWM control


The Hydra GPS is a high-efficiency, electronic pump designed for solar heating applications. The pump is controlled via an external PWM signal (continuously variable speed control), ensuring maximum energy yield.

Advantages:

  • EEI≤0.21
  • Permanent magnet motor
  • Low noise level
  • Fixed speed mode
  • Control of the pump by an external PWM signal (rising characteristic curve)


Technical data: Solar pump Hydra GPS II 20-8-130

  • Power supply: 220~240V, 50/60Hz
  • Max. input power: 65W
  • Liquid temperature: 2°C~110°C
  • Ambient temperature: 0~+40°C
  • Storage temperature: -35°C~80°C
  • Protection class: IP44
  • Max. pressure: 10 bar
  • Max. lifting height: 8m
  • Max. flow: 1.9m3/h at 5m H 0
  • Connections: 1"
  • Connection distance: 130mm
  • Insulation class: F
  • Weight: 1.4kg
