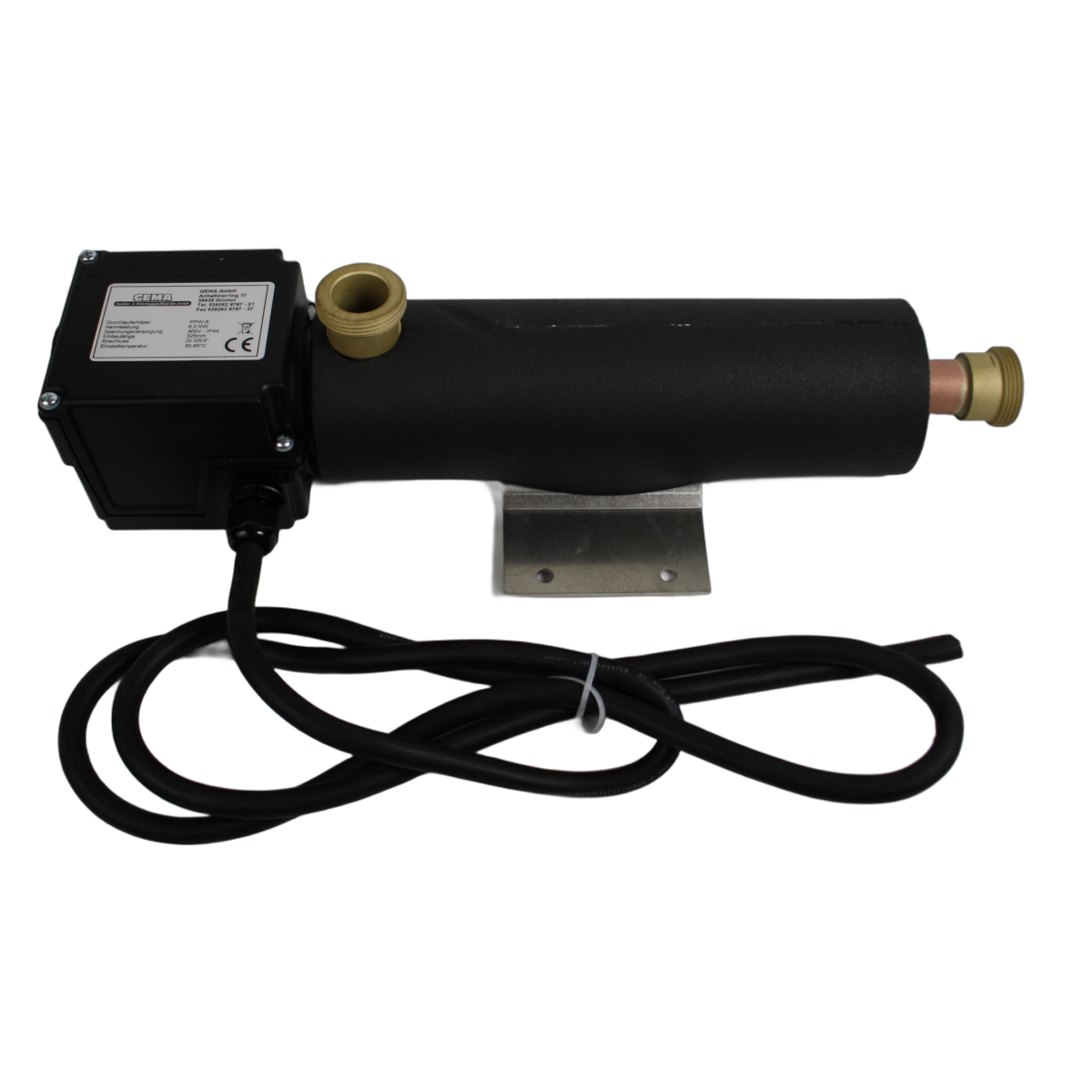

GEMA instantaneous water heater Pro 6 kW – compact auxiliary and emergency heating for heating systems and photovoltaics

Product overview

GEMA Instantaneous water heater Pro is a flexible solution for the additional heating of heating or Drinking water circuits. It is available in two power levels (6 kW and 9 kW) and is ideally suited as an emergency heater, supplementary heater or for converting excess energy. Photovoltaics-Energy converted into heat. With a compact design of only 47.2 cm in length, it easily fits even in tight technical rooms.

Advantages and features

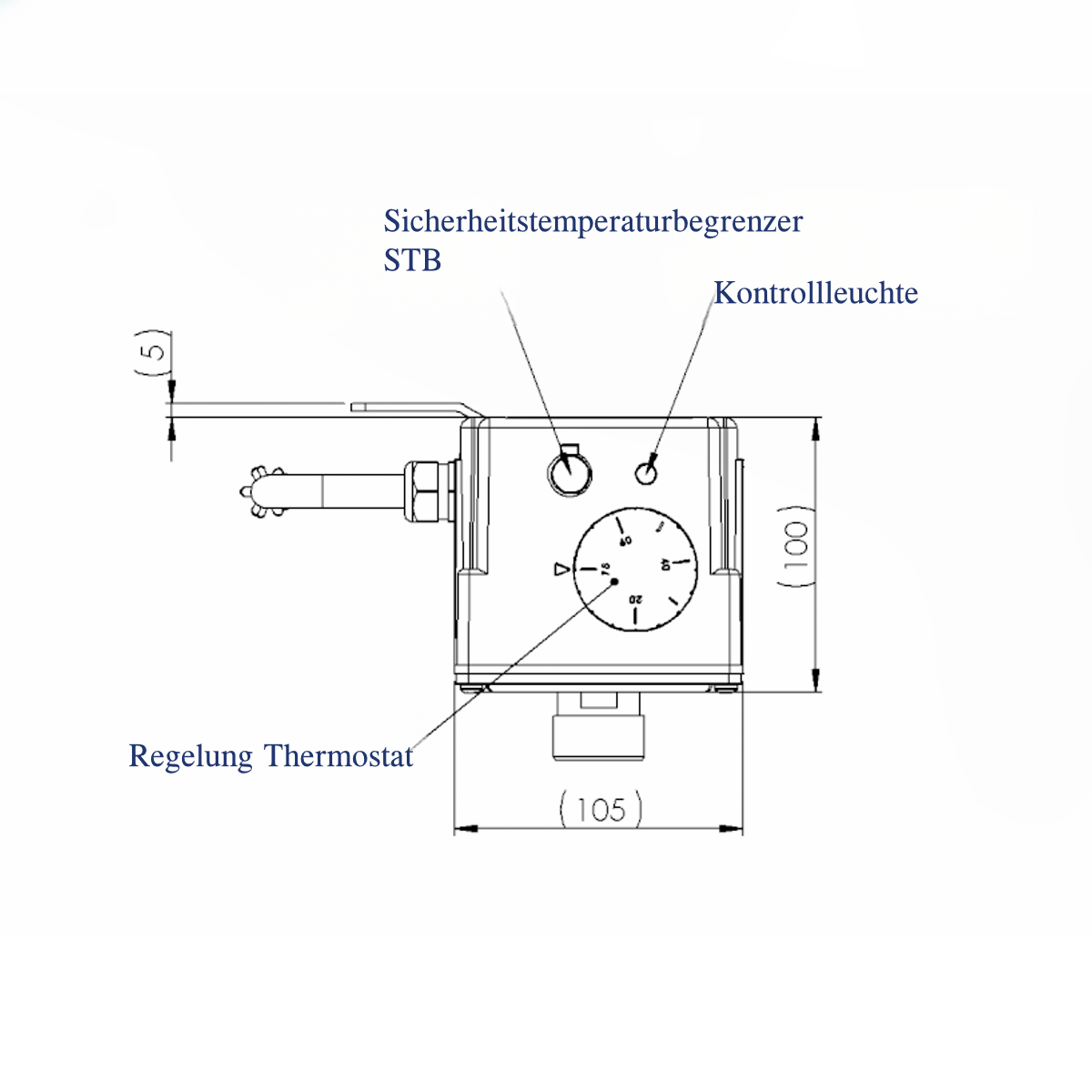

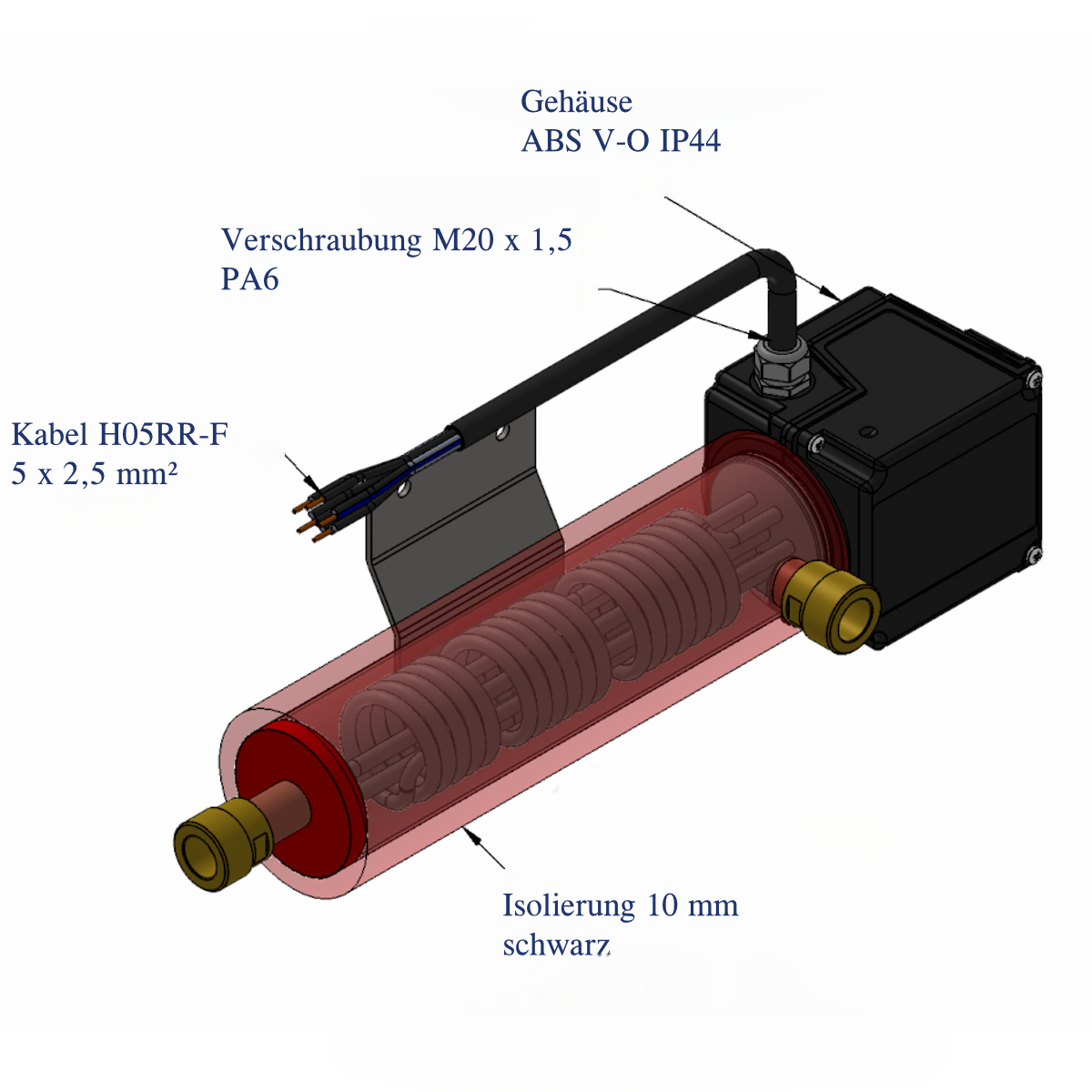

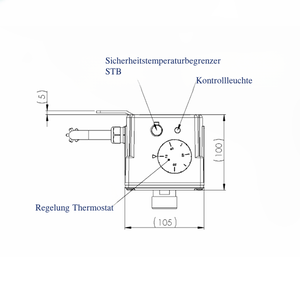

The robust Stainless steel heating element This ensures consistently high efficiency and a long service life. Thanks to the integrated temperature controller, the water temperature can be continuously adjusted between 30 °C and 85 °C, while a safety temperature limiter at 110 °C provides additional protection. An insulated housing minimizes heat loss and guarantees safe operation.

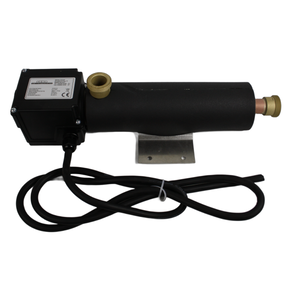

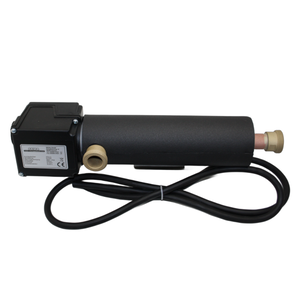

The Pro Instantaneous water heater features a factory-installed Heating element as well as a two-meter-long connection cable. A wall bracket, screws and seals are included in the scope of delivery, so you can put the device into operation immediately.

Easy integration and installation

With a 1¼" external thread connection and an IP54 protection rating, the Instantaneous water heater Suitable for use in both protected indoor areas and damp rooms. The three-phase power supply (400 V) without a Schuko plug allows for easy connection to existing electrical installations. The integrated isolating transformer ensures safe separation between the mains and heating circuits.

Areas of application and combination possibilities

The Instantaneous water heater The Pro can be seamlessly integrated into central heating systems with heat pumps, oil boilers, wood gasifiers, or pellet boilers. As an auxiliary heater, it supports peak load coverage and prevents the main boiler from continuing to run during periods of high hot water demand.

The use in conjunction with is particularly clever PhotovoltaicsSystem: Excess solar power is directly converted into heat and stored in buffer tanks. This allows you to actively contribute to reducing your electricity consumption and increasing the self-consumption of your PV system.

Technical specifications at a glance

Model 6 kW

• Heating output 6.0 kW
• Temperature controller 30–75 °C
• Safety temperature limiter 110 °C
• 1¼" male thread connection
• Max. operating pressure 10 bar
• Protection class IP54
• Heating coil material: stainless steel
• Connection cable length: 2 m

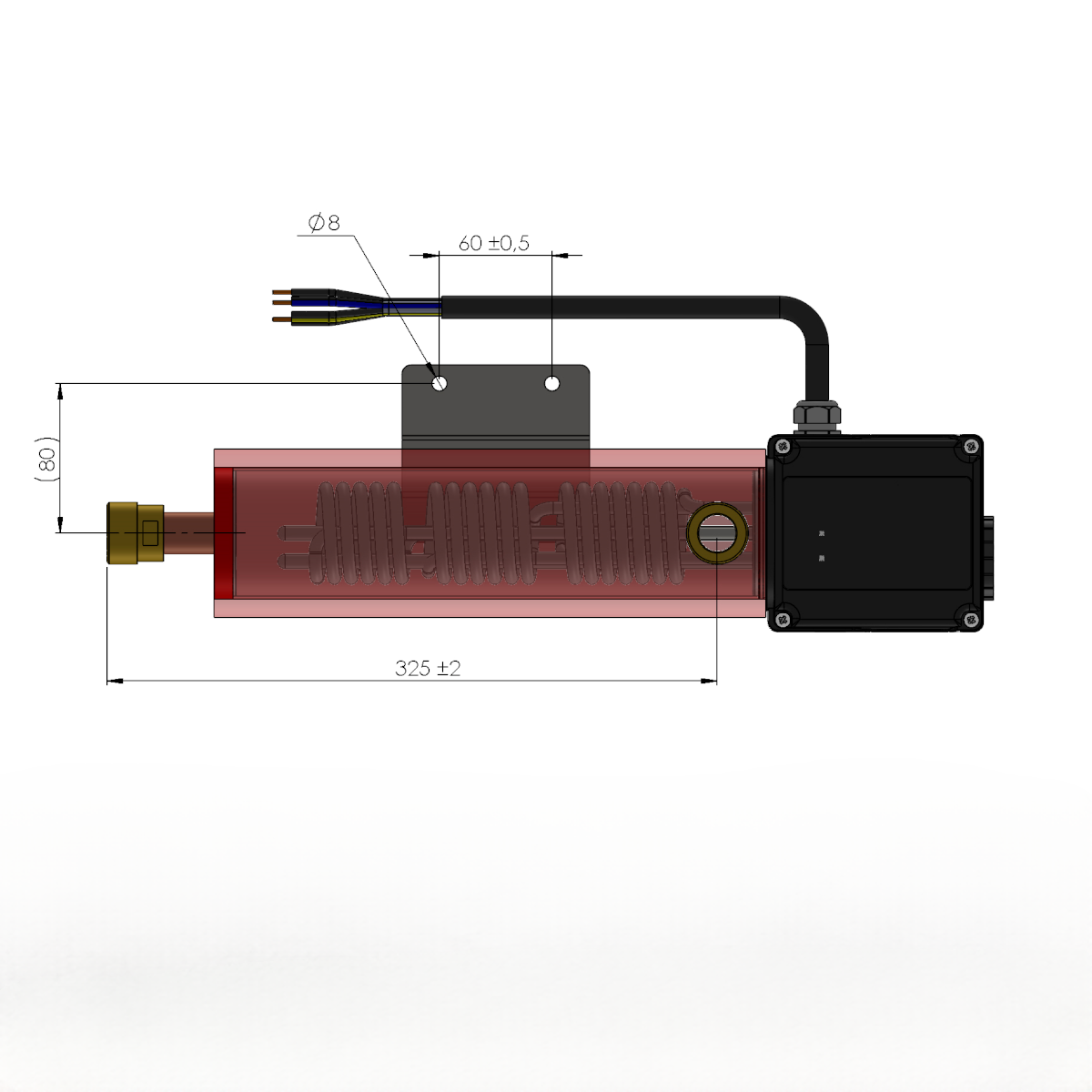

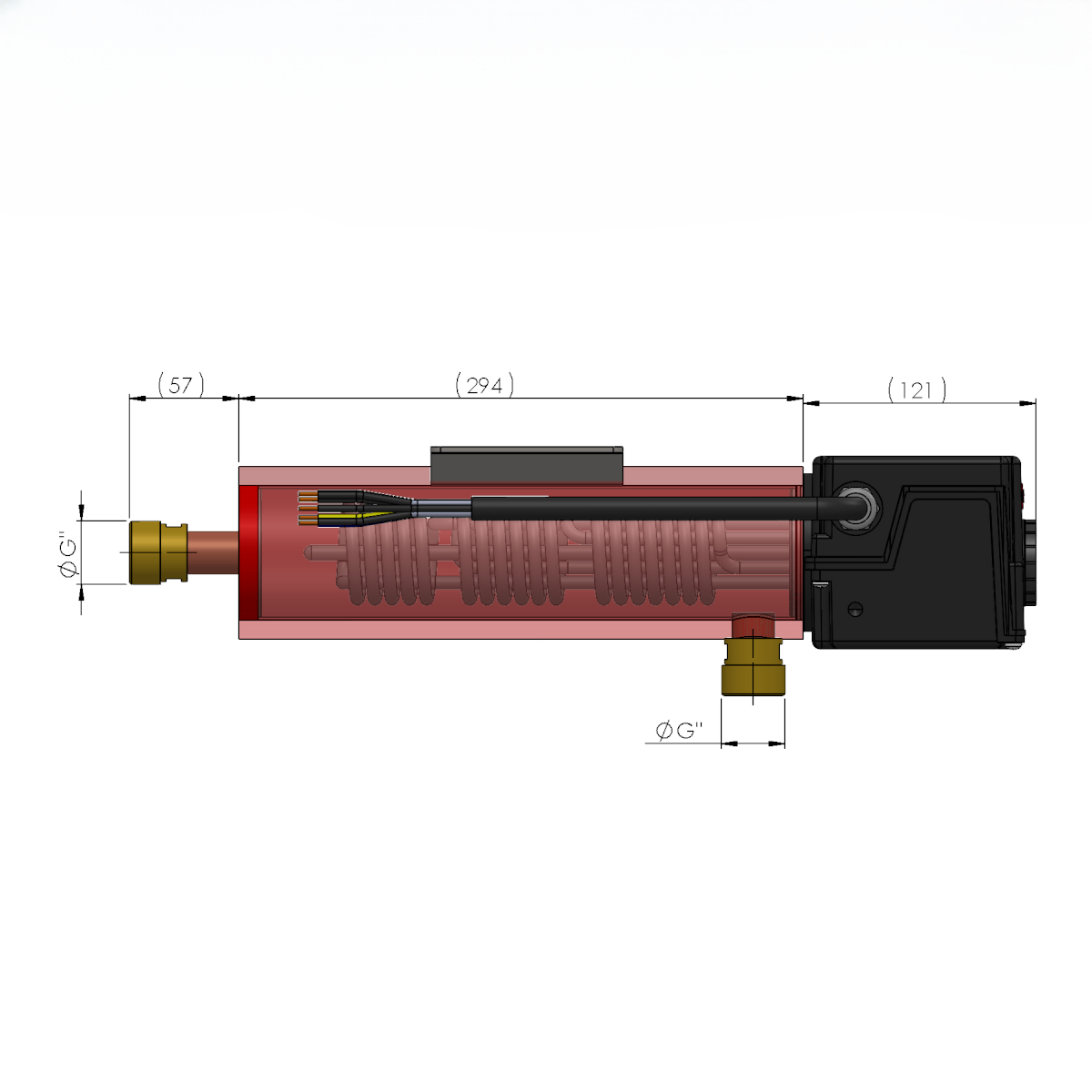

• Dimensions: Ø 89 mm × L 472 mm
• Weight 2.95 kg.

Scope of delivery

• GEMA Instantaneous water heater Per
• Assembly instructions for easy commissioning
• The screw set (optional) consists of:
  • two flat gaskets 1¼"
  • two brass screw fittings 1" AG × 1¼" IG

Download

• Datasheet
• User manual
